EPDM cold shrink end cap
Product Description

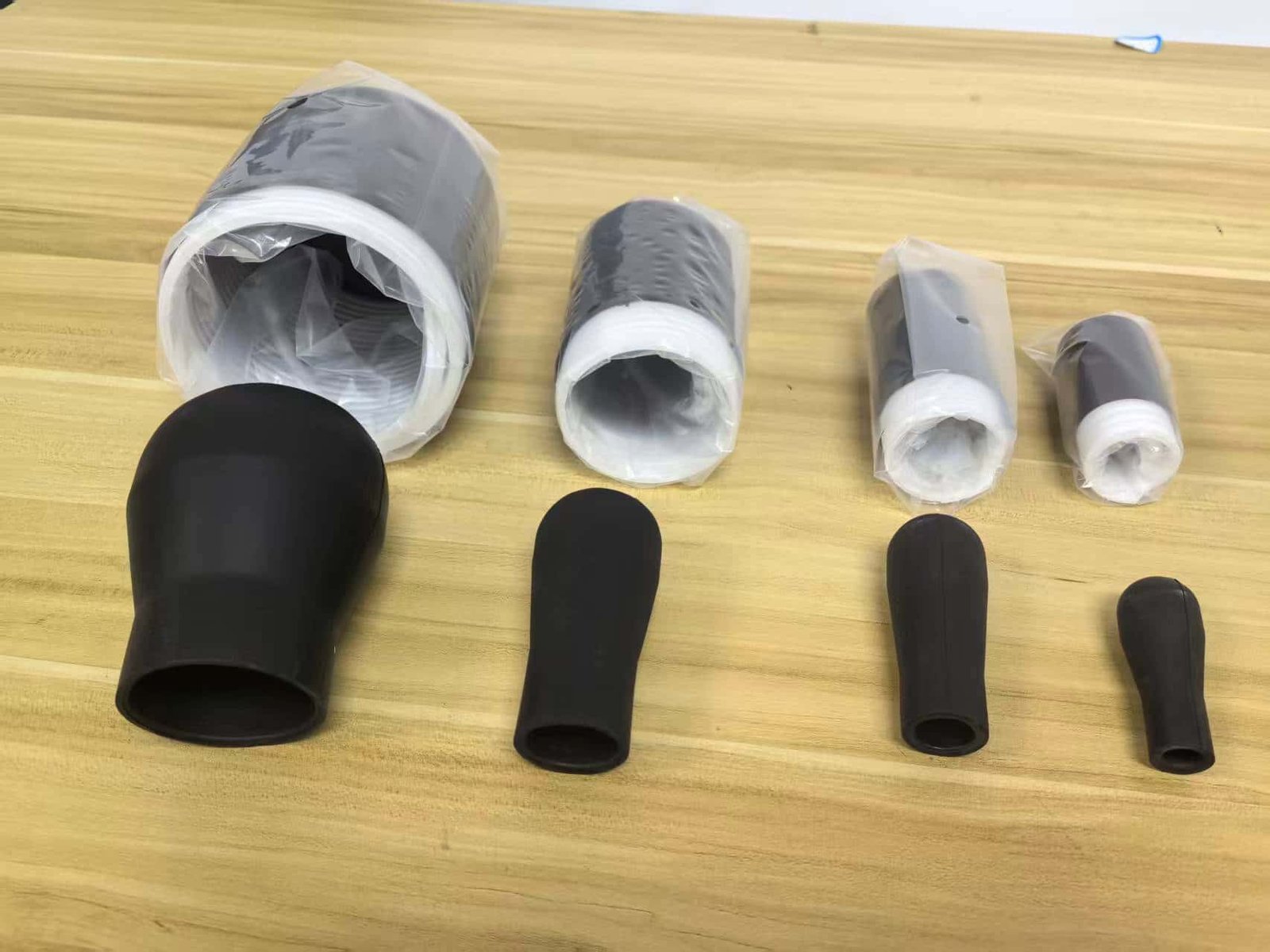

EPDM Cold Shrink End Cap is a pre-expanded, factory-assembled rubber cap designed to provide fast, reliable sealing and insulation for cable ends. Made from high-performance EPDM rubber, it shrinks automatically after removal of the inner support core, forming a tight, moisture-proof seal without the need for heat or special tools. It is ideal for indoor and outdoor applications in power distribution and telecommunications systems.
Share:
Key Features
-
Cold shrink technology – no heat, flame, or adhesives required
-
Excellent elasticity for tight sealing on various cable diameters
-
Superior resistance to UV, ozone, weathering, and moisture
-
High electrical insulation performance
-
Long-term aging stability and durability
-
Easy and safe installation, even in confined spaces
-
Excellent resistance to water, salt spray, acids, alkalis, and industrial pollutants
-
Suitable for indoor, outdoor, underground, and coastal environments
Applications
-
Sealing and insulating ends of low- and medium-voltage power cables
-
Protection of unused or spare cable ends
-
Telecommunications and signal cable termination
-
Temporary or permanent cable end protection
Key Features
Material
-
Body: EPDM (Ethylene Propylene Diene Monomer) Rubber
-
Support Core: Removable plastic spiral core
Electrical Properties
-
Dielectric Strength: ≥ 20 kV/mm
-
Volume Resistivity: ≥ 1 × 10¹⁴ Ω·cm
-
Insulation Resistance: High, stable under humid conditions
Mechanical Properties
-
Tensile Strength: ≥ 8 MPa
-
Elongation at Break: ≥ 400%
-
Shrink Ratio: Designed to accommodate a wide cable diameter range
Thermal Properties
-
Operating Temperature: –40°C to +105°C
-
Short-Term Overload Temperature: Up to +130°C
Installation
-
Place the cold shrink end cap over the cable end.
-
Ensure correct positioning.
-
Pull out the plastic support core in a continuous motion.
-
The end cap shrinks automatically to form a tight seal.
Packaging details
1# 52cm*52cm*26cm 500pcs, 15kg
2#
| Size | 1# D25-L60, 2# D35-L75, 3# D55-L82, 4# D90-L100 |
|---|---|
| Color | black |
